Maybe the Fastest Disk Usage Program on macOS

I set out to write the fastest du -sh clone on macOS and I think I've done it. On a large benchmark, dumac is 6.4x faster than du and 2.58x faster than diskus with a warm disk cache.

The odds were certainly in my favor as diskus does not use macOS-specific syscalls and instead uses standard POSIX APIs. As I'll go on to explain, I used tokio tasks and getattrlistbulk to be faster than the current crop of du -sh clones that run on macOS.

The Challenge

My benchmark is a directory with 12 levels, 100 small files per level, with a branching factor of two — 4095 directories, 409500 files.

du -sh (disk usage, summarize, human-readable) works out the total size of a directory by traversing all the files and subdirectories. It must list every file and retrieve each file's size (in blocks) to sum the total.

On Unix-like systems a directory listing, like readdir, or the fts family of traversal functions, only provide filenames and inode numbers. It doesn't provide file sizes. So du needs to call lstat on every single file and hardlink it comes across.

In my benchmark this means making 4k+ syscalls for the directories and 400k+ syscalls for the files.

The traditional du (from GNU coreutils or BSD) is typically single-threaded and processes one file at a time. It doesn't use multiple CPU cores, or overlapping I/O operations, meaning the work is handled sequentially.

On my Apple M1 Pro, the CPU is not saturated and the majority of the time is spent waiting on each sequential syscall.

time du -sh ./deep
1.6G ./deep
du -sh ./deep 0.04s user 1.08s system 43% cpu 2.570 total

The performance of disk usage programs depends on the filesystem and the underlying hardware. Benchmarks for these projects are usually done on Linux with a cold or warm disk cache. For the cold runs, the disk cache is cleared between each run.

I couldn't find a reliable way of clearing the disk cache on macOS. However, on macOS with modern Apple hardware, I found that the performance of disk usage programs with a warm disk cache strongly correlates with cold disk cache performance. So to make my life easier, warm disk cache results are the only thing I'm measuring and comparing.

Concurrency

Previously, when I wrote about beating the performance of grep with Go, I found that just adding goroutines was enough to outperform the stock grep that comes with macOS.

My first attempt to write a faster du -sh in Go did not go so well. I expected that my quick prototype, focused on the core problem of traversing and summing the block size, would be faster.

var sem = make(chan struct{}, 16)
func handleDir(rootDir string, ch chan int64) {
size := int64(0)
// open()
dir, err := os.Open(rootDir)
if err != nil {
panic(err)
}
defer dir.Close()
// getdirentries64()
files, err := dir.Readdir(0)
if err != nil {
panic(err)
}
for _, file := range files {
sem <- struct{}{}
if file.IsDir() {
childCh := make(chan int64)
go handleDir(filepath.Join(rootDir, file.Name()), childCh)
childSize := <-childCh
size += childSize
} else {
// lstat64()
size += file.Sys().(*syscall.Stat_t).Blocks * 512
}
<-sem
}
ch <- size
}

It was slower than du -sh. It took twice as long on my benchmark.

./goroutines temp/deep 0.30s user 3.12s system 68% cpu 4.987 total

I ran a System Trace with macOS's Instruments to see what it was doing.

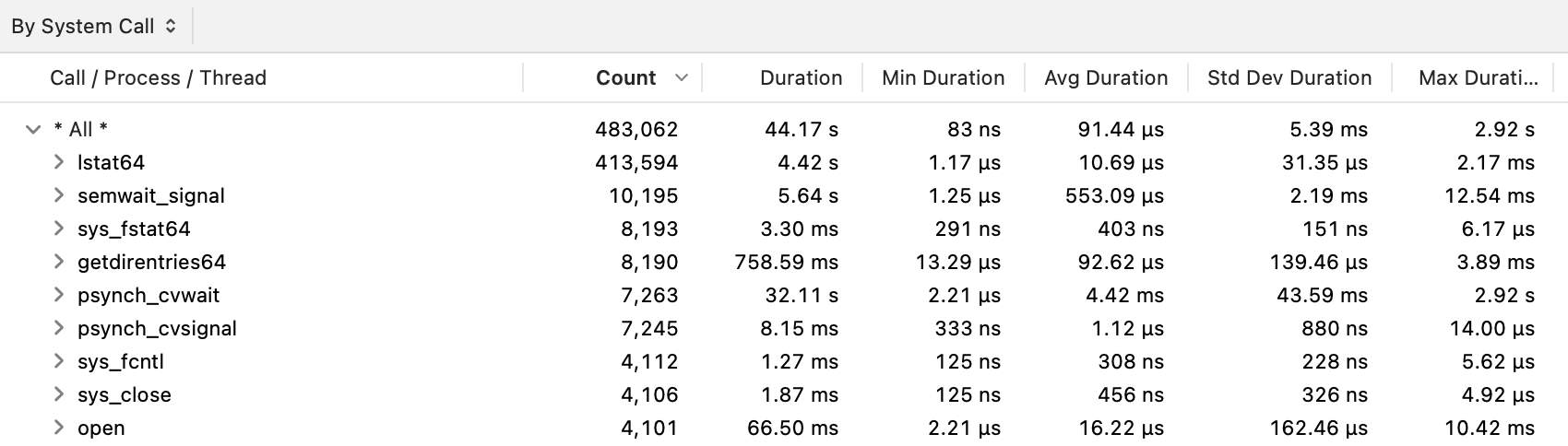

A list of system calls made by ./goroutines.

The high amount of lstat64 calls is expected. That's fetching the attributes of each file. The open and close calls are also expected, roughly one per directory.

getdirentries64 calls is twice the number of directories in my benchmark. This is because it's designed to read directory entries into a buffer until it gets an empty result. This is the syscall that Go's Readdir uses under the hood on macOS.

The other syscalls here are related to the scheduling of goroutines and channels. I tried a few different designs (and different sized semaphores on the I/O) but it didn't affect performance that much.

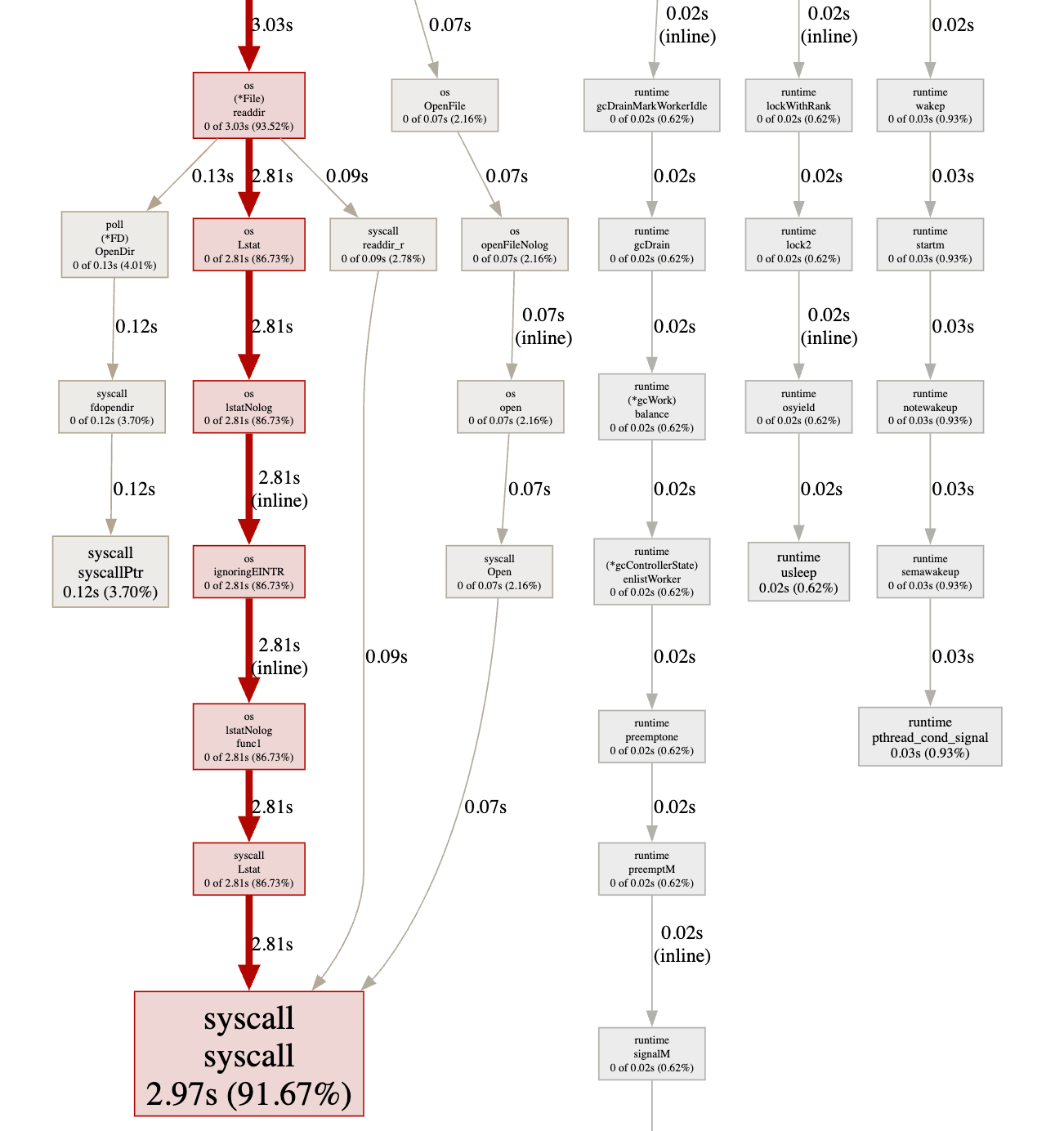

I ran a CPU profile with pprof and saw that the majority of the time was spent doing the syscalls I saw above.

A Go CPU profile.

My understanding at this point was that there is an inherent system resource cost to getting this information out, with some bandwidth/contention limitations, and some per-syscall Go overhead too.

I went looking for a more efficient method of getting this information out of the kernel without making a syscall for each file.

getattrlistbulk

macOS has a syscall called getattrlistbulk(2) which allows you to read multiple directory entries and their metadata in one go. It's like a combined "readdir + stat" that returns a batch of file names along with requested attributes like file type, size, etc.

Instead of calling stat for every file, one getattrlistbulk call can return dozens or hundreds of entries at once. This means far fewer syscalls for my benchmark!

First you open a directory (one open call) and then make a getattrlistbulk call which will retrieve an amount of entries that fits in the passed buffer (128KB was optimal in my testing), along with the attributes you need to do the same work as du -sh like name, inode, type, and size. You loop and call it again until the directory is fully read (it returns 0 when done).

I found some background on this syscall in a mailing list:

Also note that as of Yosemite, we have added a new API: getattrlistbulk(2), which is like getdirentriesattr(), but supported in VFS for all filesystems. getdirentriesattr() is now deprecated.

The main advantage of the bulk call is that we can return results in most cases without having to create a vnode in-kernel, which saves on I/O: HFS+ on-disk layout is such that all of the directory entries in a given directory are clustered together and we can get multiple directory entries from the same cached on-disk blocks.

My first attempt at wiring up this syscall used CGO. I wrote a C function that took a directory file descriptor and called getattrlistbulk in a loop until it had all the file info, and then returned the list of files and their attributes to Go.

// File info structure to track size and inode
typedef struct {
long blocks;
uint64_t inode;
} file_info_t;
// Directory information and subdirectory names
typedef struct {
file_info_t *files;
int file_count;
char **subdirs;
int subdir_count;
} dir_info_t;
// Get directory info (called from Go)
dir_info_t* get_dir_info(int dirfd) {
struct attrlist attrList = {0};
// Describe what we want back
attrList.bitmapcount = ATTR_BIT_MAP_COUNT;
attrList.commonattr = ATTR_CMN_RETURNED_ATTRS | ATTR_CMN_NAME | ATTR_CMN_ERROR | ATTR_CMN_OBJTYPE | ATTR_CMN_FILEID;
attrList.fileattr = ATTR_FILE_ALLOCSIZE;
// Set buffer size (affects number of calls required)
char attrBuf[128 * 1024];
int file_capacity = INITIAL_FILE_CAPACITY;
file_info_t *files = (file_info_t *)malloc(file_capacity * sizeof(file_info_t));
int file_count = 0;
int subdir_capacity = INITIAL_SUBDIR_CAPACITY;
char **subdirs = (char **)malloc(subdir_capacity * sizeof(char*));
int subdir_count = 0;
for (;;) {
int retcount = getattrlistbulk(dirfd, &attrList, attrBuf, sizeof(attrBuf), 0);
if (retcount == 0) {
break;
}
char *entry = attrBuf;
for (int i = 0; i < retcount; i++) {
// .. parsing code

The Go-side of this looks quite similar to my initial prototype. The C types are automatically generated on the Go-side in my editor and during go build. To turn the C pointers into a Go slice or struct, you use unsafe functions.

You also need to then free the C memory by calling into CGO again.

package main
// #cgo CFLAGS: -O3 -march=native -Wall -flto
// #include "lib.h"
import "C"
// ..
func handleDir(rootDir string) int64 {
dir, err := os.Open(rootDir)
// ..
info := C.get_dir_info(C.int(dir.Fd()))
// Free the C objects' memory
defer C.free_dir_info(info)
size := int64(0)
// Process files
if info.file_count > 0 {
files := (*[1 << 30]C.file_info_t)(unsafe.Pointer(info.files))[:info.file_count:info.file_count]
for _, file := range files {
size += int64(file.blocks) * 512
}
}
// Process subdirectories recursively
if info.subdir_count > 0 {
var wg sync.WaitGroup
var totalSize int64
subdirs := (*[1 << 30]*C.char)(unsafe.Pointer(info.subdirs))[:info.subdir_count:info.subdir_count]
for i, subdir := range subdirs {
wg.Add(1)
go func(index int) {
defer wg.Done()
childSize := handleDir(filepath.Join(rootDir, C.GoString(subdir)))
atomic.AddInt64(&totalSize, childSize)
}(i)
}
wg.Wait()
size += atomic.LoadInt64(&totalSize)
}
return size
}

The results were great. My Go program was now ~3x faster than du -sh for my benchmark.

./cgo temp/deep 0.07s user 3.70s system 443% cpu 0.850 total

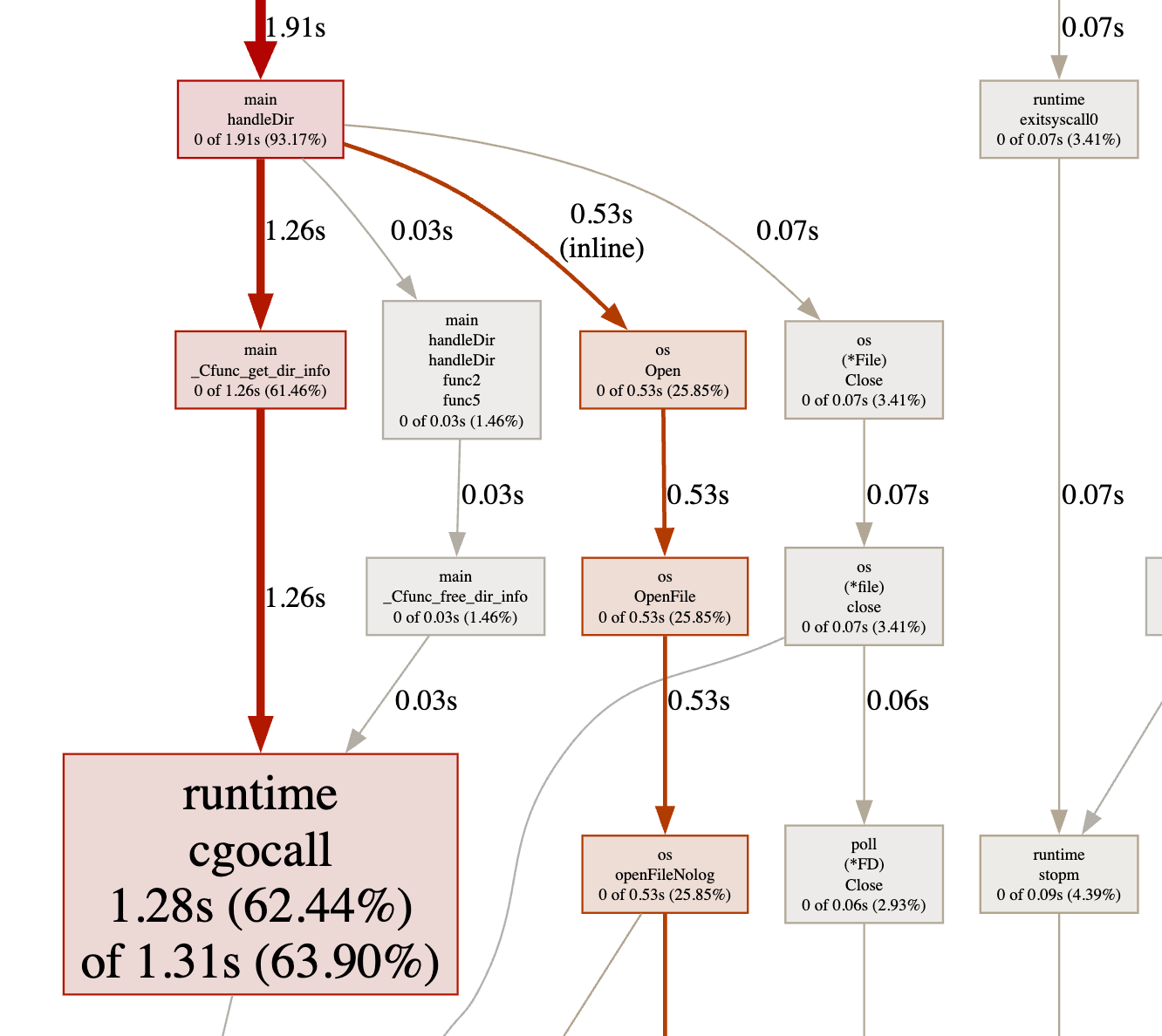

I ran another CPU profile with pprof and saw that the majority of the time was spent in CGO, running my fairly optimized C code.

A Go CPU profile.

This was where I wanted to spend CPU time: setting up the getattrlistbulk call, making it, and parsing the result. I optimized the buffer size (KB) and also tuned some of the memory allocations but then I hit a dead end. I couldn't get any faster without changing the overall design.

I had spent a few hours to get this far and now I wanted to go all the way. I knew that using CGO was suboptimal here because of the overhead of calling into C from Go. I've seen some sources suggest that the cost is 40ns for trivial calls. Along with some extra allocations on the Go side that I was having trouble getting rid of, I suspected the per-directory overhead to be higher.

I wanted to go all the way and see how fast I could push the performance here. So I ported my program to Rust.

Rust

By using Rust, I avoid a context switch between runtimes. I'm making the same C function call underneath, libc::getattrlistbulk, but it's a zero-cost abstraction. My program calls into the kernel many times from Rust, but without bouncing back and forth between Go and C on each directory.

I also needed a new concurrency primitive. An alternative to Go's goroutines. I picked tokio tasks as I understand them to be fairly analogous — light-weight, multiplexed green threads, and cheap to spawn.

// Calculate total size recursively
fn calculate_size(root_dir: String) -> Pin<Box<dyn Future<Output = Result<i64, String>> + Send>> {
Box::pin(async move {
// Get directory contents
let dir_info = tokio::task::spawn_blocking({
let root_dir = root_dir.clone();
// Make the libc::getattrlistbulk call
move || get_dir_info(&root_dir)
}).await.map_err(|_| "task join error".to_string())??;
let mut total_size = 0i64;
// Process files in this directory, deduplicating by inode
for file in &dir_info.files {
total_size += check_and_add_inode(file.inode, file.blocks);
}
// Process subdirectories concurrently with limiting
if !dir_info.subdirs.is_empty() {
let semaphore = Arc::new(Semaphore::new(MAX_CONCURRENT));
let futures: Vec<_> = dir_info.subdirs.into_iter()
.map(|subdir| {
let semaphore = semaphore.clone();
let subdir_path = Path::new(&root_dir).join(&subdir).to_string_lossy().to_string();
tokio::spawn(async move {
let _permit = semaphore.acquire().await.unwrap();
calculate_size(subdir_path).await
})
})
.collect();
// Collect all results
for future in futures {
match future.await {
Ok(Ok(size)) => total_size += size,
// ..
}
}
}
Ok(total_size)
})
}

Similar to my original Go prototype, it's a recursive traversal. I experimented with some concurrency limiting to avoid thrashing system resources and the overhead of context-switching and contention of threads. It didn't yield much performance improvements. Maybe 10% or so. I settled with a semaphore of 64.

du -sh deduplicates hardlinks so, while working concurrently, every time we sum the block size of a file, we need to lock and check whether we've seen the inode before.

I used a sharded inode set for this to lower the lock contention overhead.

// Sharded inode tracking
const SHARD_COUNT: usize = 128;
// Global sharded inode set for hardlink deduplication
static SEEN_INODES: LazyLock<[Mutex<HashSet<u64>>; SHARD_COUNT]> = LazyLock::new(|| {
std::array::from_fn(|_| Mutex::new(HashSet::new()))
});

In my final benchmark results, I've included diskus — a delightfully simple (and fast!) du -sh clone. It doesn't use macOS native APIs so it's a bit of an unfair comparison but it is the fastest du -sh clone I could find aside from my final Rust program which I've called dumac.

hyperfine --warmup 3 --min-runs 3 'du -sh temp/deep' 'diskus temp/deep' './goroutines temp/deep' './cgo temp/deep' './target/release/dumac temp/deep'
Benchmark 1: du -sh temp/deep
Time (mean ± σ): 3.330 s ± 0.220 s [User: 0.040 s, System: 1.339 s]
Range (min … max): 3.115 s … 3.554 s 3 runs
Benchmark 2: diskus temp/deep
Time (mean ± σ): 1.342 s ± 0.068 s [User: 0.438 s, System: 7.728 s]
Range (min … max): 1.272 s … 1.408 s 3 runs
Benchmark 3: ./goroutines temp/deep
Time (mean ± σ): 6.810 s ± 0.010 s [User: 0.290 s, System: 3.380 s]
Range (min … max): 6.799 s … 6.816 s 3 runs
Benchmark 4: ./cgo temp/deep
Time (mean ± σ): 564.6 ms ± 19.5 ms [User: 51.1 ms, System: 2634.2 ms]
Range (min … max): 542.6 ms … 591.0 ms 5 runs
Benchmark 5: ./target/release/dumac temp/deep
Time (mean ± σ): 521.0 ms ± 24.1 ms [User: 114.4 ms, System: 2424.5 ms]
Range (min … max): 493.2 ms … 560.6 ms 6 runs
Summary
./target/release/dumac temp/deep ran
1.08 ± 0.06 times faster than ./cgo temp/deep
2.58 ± 0.18 times faster than diskus temp/deep
6.39 ± 0.52 times faster than du -sh temp/deep
13.07 ± 0.61 times faster than ./goroutines temp/deep

I was able to remove ~43ms by moving from Go/CGO to Rust.

If my program is a success, it's because I've tried to reduce the cost of all of the work that is not optimal syscalls.

The time spent on syscalls is ~91% of the time in the below flamegraph. Locking for the inode deduplication is ~1.5% and the remaining time is the scheduling overhead of tokio.

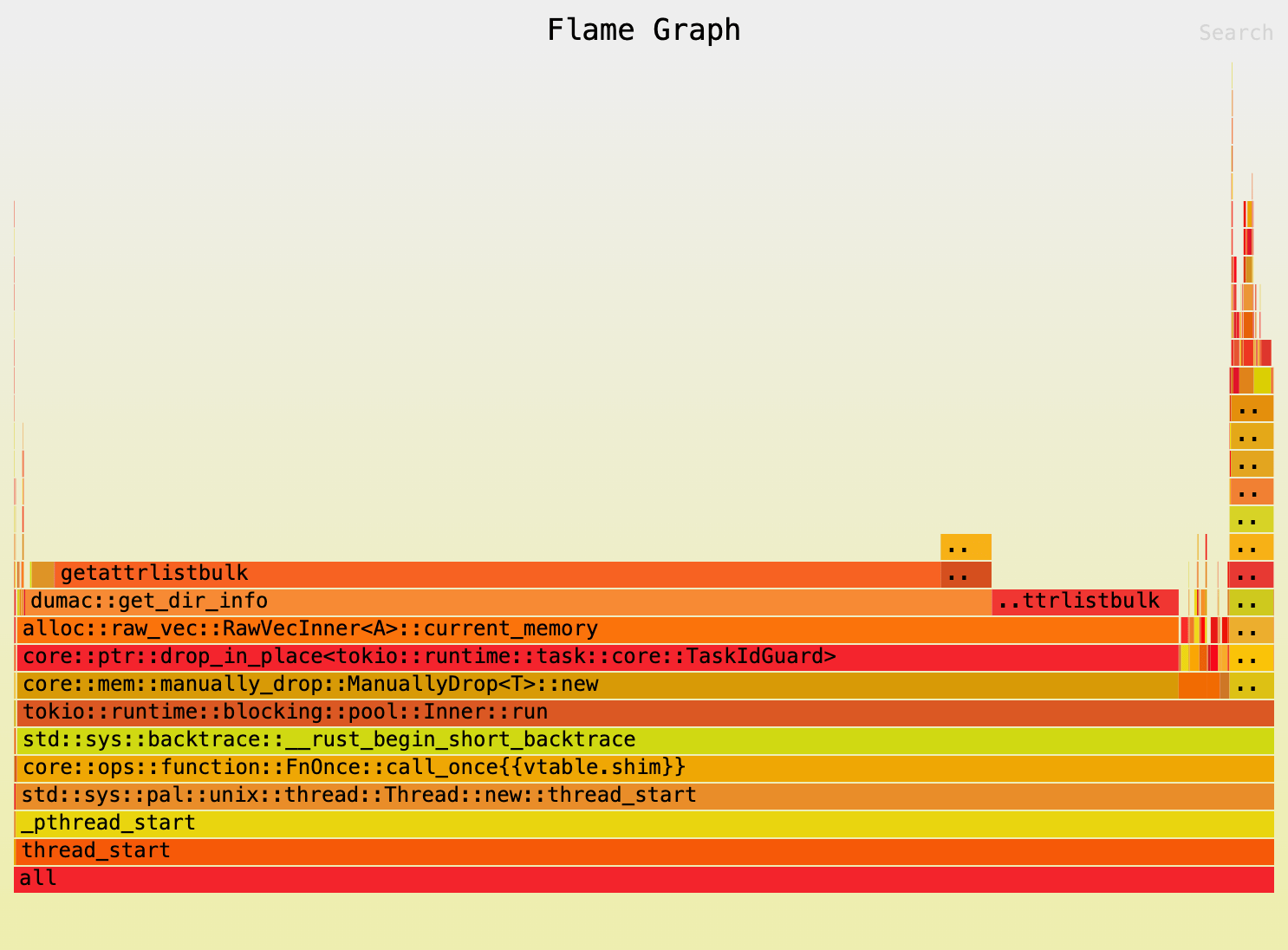

The result of cargo flamegraph

Further Reading

I have a version where I called getattrlistbulk from within Go like:

syscall.RawSyscall6(
SYS_GETATTRLISTBULK,
uintptr(fd),
uintptr(unsafe.Pointer(&attrList)),
uintptr(unsafe.Pointer(&attrBuf[0])),
uintptr(len(attrBuf)),
0, // options
0, // unused
)

But it was actually slower than using CGO.

The dumac repository contains the source code for my attempts as I iterated towards my final Rust program.

I was inspired by the work behind dut (Show HN: Dut – a fast Linux disk usage calculator) which is sadly Linux-only. I'm fairly confident that some of the ideas behind it could be ported to macOS native APIs and supersede the performance of my program. Especially when it comes to reducing the overhead of tokio's scheduler.

There are also some fast disk usage programs that show useful, and in some cases interactive, terminal output like dust and dua.

A fairly up-to-date blog post on the performance of reading directories on macOS is Performance considerations when reading directories on macOS.
